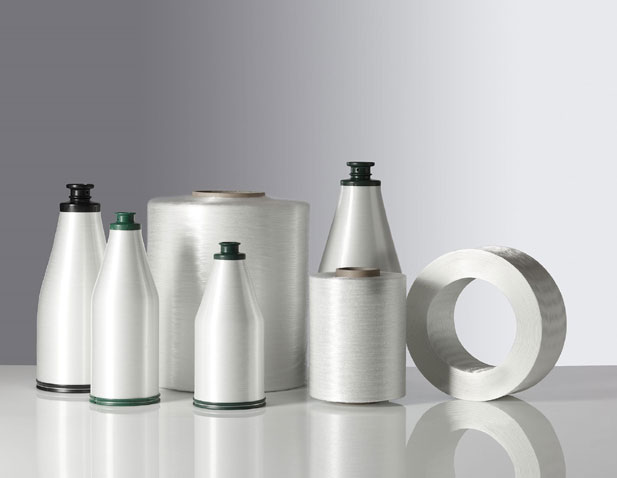

Fiberglass Yarns

Fiberglass yarns consist of a defined number of E-Glass/C- GLASS filaments of a certain nominal diameter, brought together to form a yarn. The structure of the yarn is fixed and protected by a size and a slight twist, Either in S/Z-direction.

KEY features:-
   High Tensile Strength
   Low thermal conductivity coefficient
   Fireproof
   Good electrical insulation
   Low static, excellent mechanical properties

TECHNICAL PARAMETERS
Linear density 7 tex- 200 tex
Twist s twist or z twist
Type single yarn, twisted yarn, plied yarn
Filament diameter 3um to 13um
APPLICATION AREA
Insulation Weaving
Reinforcement Filtration

PRODUCT CODE GLASS LINEAR DENSITY FILAMENT DIAMETER
CC11 150 1/0 C GLASS 33 TEX 11UM
CC11 75 1/0 C GLASS 68 TEX 11UM
CC11 37 1/0 C GLASS 134 TEX 11 UM
EC9 150 1/0 E GLASS 33 TEX 9 UM
EC9150 1/2 E GLASS 66 TEX 9 UM
EC975 1/0 E GLASS 68 TEX 9UM
EC9 37 1/0 E GLASS 134 TEX 9 UM
